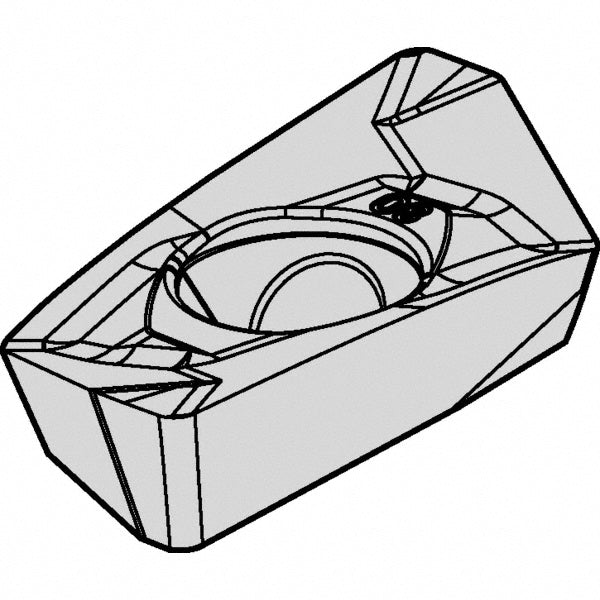

EDPT180516PDERGD Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5545398
MFR# 5545398ISO/ANSI# EDPT180516PDERGDCat# EDPT180516PDERGDSeries EDPT
$28.85List $35.22
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5545398 is a EDPT180516PDERGD solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEP1816E
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutter series compatibilityMill 1-18
Cutting edge styleHoned
Included angle degree70
Inscribed circle0.4310
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1816
Insert styleEDPT
Iso codeEDPT180516PDERGD
Length0.8580
Length range0.7000 to 0.9000
Manufacturers catalog numberEDPT180516PDERGD
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2165
Thickness range0.2000 to 0.2200
Width0.4310
