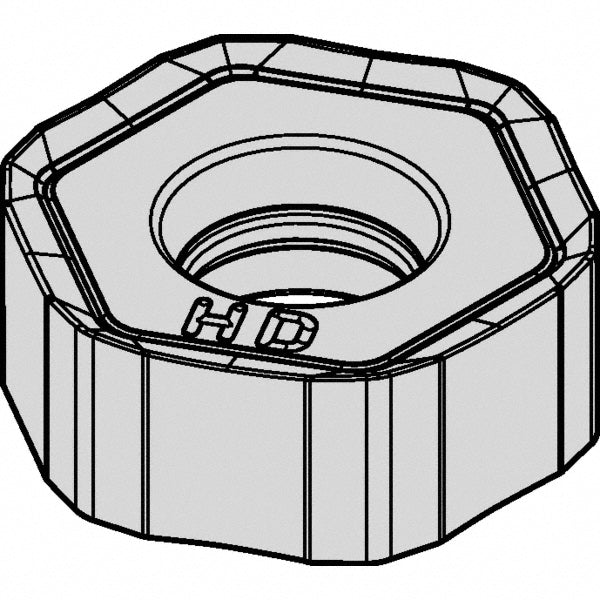

HNPJ0604ANSNHD Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5550702
MFR# 5550702ISO/ANSI# HNPJ0604ANSNHDCat# HNPJ0604ANSNHDSeries HNPJ
$28.04List $34.22
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeHexagon
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5550702 is a HNPJ0604ANSNHD solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHNPJ43ANSNHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityDodeka
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree120
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size4
Insert size code43
Insert styleHNPJ
Iso codeHNPJ0604ANSNHD
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberHNPJ0604ANSNHD
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1731
Thickness range0.1500 to 0.1750
Width0.4724
