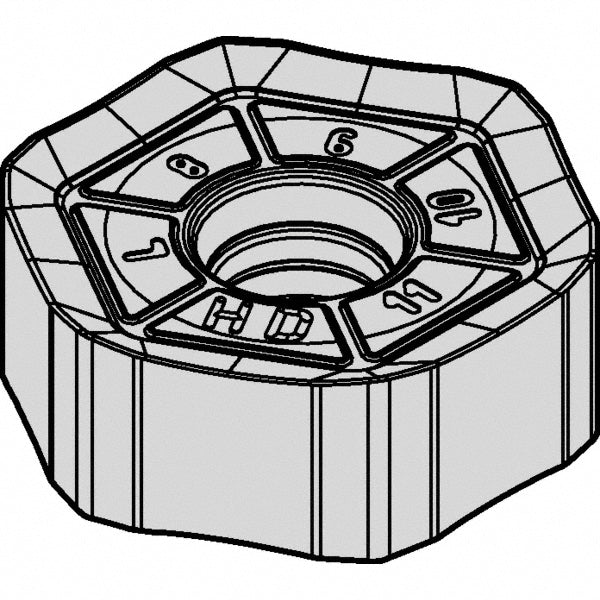

HNPJ0905ANSNHD Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5550796
MFR# 5550796ISO/ANSI# HNPJ0905ANSNHDCat# HNPJ0905ANSNHDSeries HNPJ
$33.23List $40.57
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeHexagon
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5550796 is a HNPJ0905ANSNHD solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHNPJ535ANSNHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityDodeka
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree120
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size5
Insert size code535
Insert styleHNPJ
Iso codeHNPJ0905ANSNHD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNPJ0905ANSNHD
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2151
Thickness range0.2000 to 0.2200
Width in5/8
