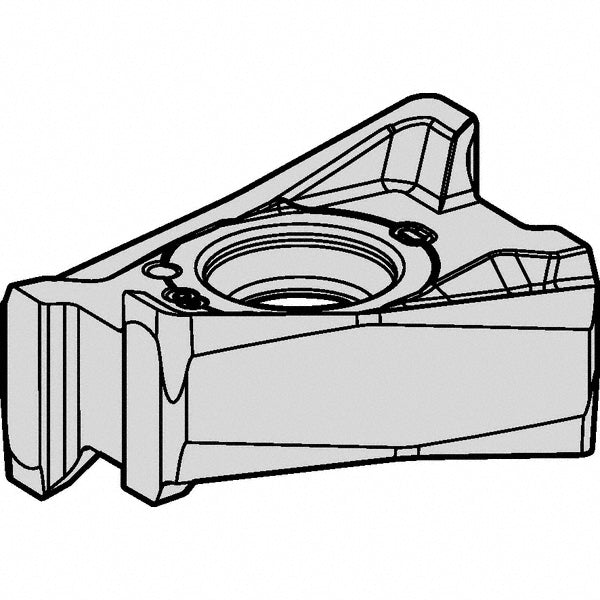

LNGU15T608SRGEM Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 5575829

Kennametal

LNGU15T608SRGEM Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 5575829

MFR# 5575829ISO/ANSI# LNGU15T608SRGEMCat# LNGU15T608SRGEMSeries LNGU

$51.85List $62.20 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 5575829 is a LNGU15T608SRGEM solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeLNGU542SRGEM
Chip breakerGEM
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityMill 4-15
Cutting edge styleChamfered; Honed
Hole diameter0.1831
Included angle degree90
Inscribed circle0.3940
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size5
Insert size code542
Insert styleLNGU
Iso codeLNGU15T608SRGEM
Length0.6700
Length range0.6500 to 0.7000
Manufacturers catalog numberLNGU15T608SRGEM
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2740
Thickness range0.2500 to 0.3500
Width0.3940
