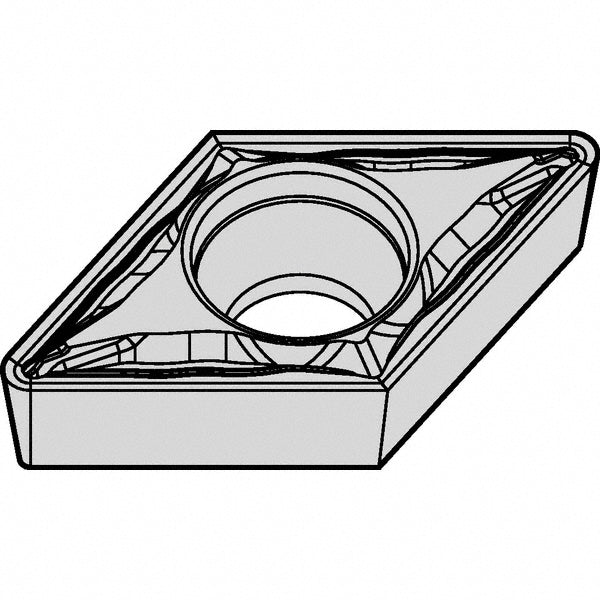

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KCM25B, TiCN - Kennametal 5591129

Kennametal

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KCM25B, TiCN - Kennametal 5591129

MFR# 5591129ISO/ANSI# DCMT11T302Series Screw-On

$23.56List $28.76 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCM25B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5591129 is a carbide indexable insert, grade KCM25B, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeDCMT32505
Ansi size code32505
Chip breakerFP
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle55
Industry standard numberDCMT32505FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32505
Insert styleDCMT
Insert thickness in5/32
Iso insert codeDCMT11T302
Iso size code11T302
Length range0.7000 - 10.0000
Manufacturers catalog number5591129
Manufacturer gradeKCM25B
Material gradeC1; C2
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
