Kennametal

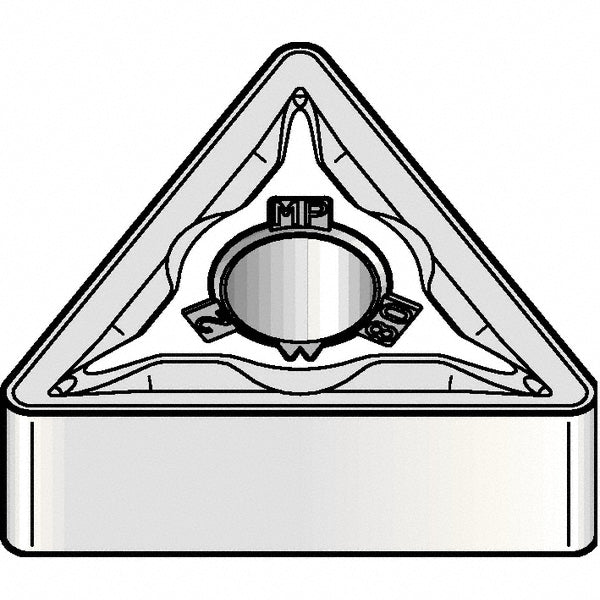

TNMG160404MP Carbide Insert, Grade KCM25B, TiCN - Kennametal 5591785
MFR# 5591785ISO/ANSI# TNMG160404Series KENLOC
$20.75List $25.32
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKCM25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5591785 is a TNMG160404MP carbide indexable insert, grade KCM25B, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeTNMG331
Ansi size code331
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle60
Industry standard numberTNMG331MP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160404MP
Iso insert codeTNMG160404
Iso size code160404
Length range0.6000 - 0.6500
Manufacturers catalog number5591785
Manufacturer gradeKCM25B
Material gradeC1; C2
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle6
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6496
Wiper edgeNo
