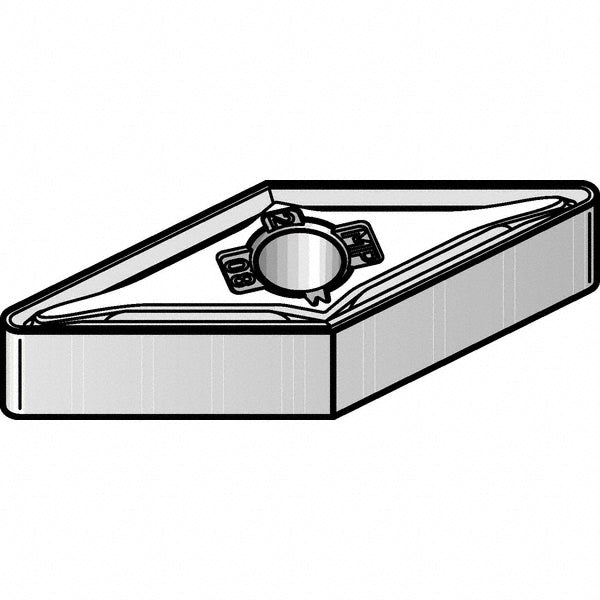

VNMG331 Carbide Insert, Grade KCM25B, TiCN - Kennametal 5591789

Kennametal

VNMG331 Carbide Insert, Grade KCM25B, TiCN - Kennametal 5591789

MFR# 5591789ISO/ANSI# VNMG160404Series KENLOC

$31.29List $38.19 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCM25B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5591789 is a VNMG331 carbide indexable insert, grade KCM25B, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeVNMG331
Ansi size code331
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Industry standard numberVNMG331MP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG331
Iso insert codeVNMG160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number5591789
Manufacturer gradeKCM25B
Material gradeC1; C2
Maximum depth of cut0.4354
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle6
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
