Kennametal
SNMG150612MP Carbide Insert, Grade KCM25B, TiCN - Kennametal 5591954
MFR# 5591954ISO/ANSI# SNMG150612Series KENLOC
$36.09List $44.05
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeS - Square
GradeKCM25B
MaterialCarbide
CoatingTiCN
Description

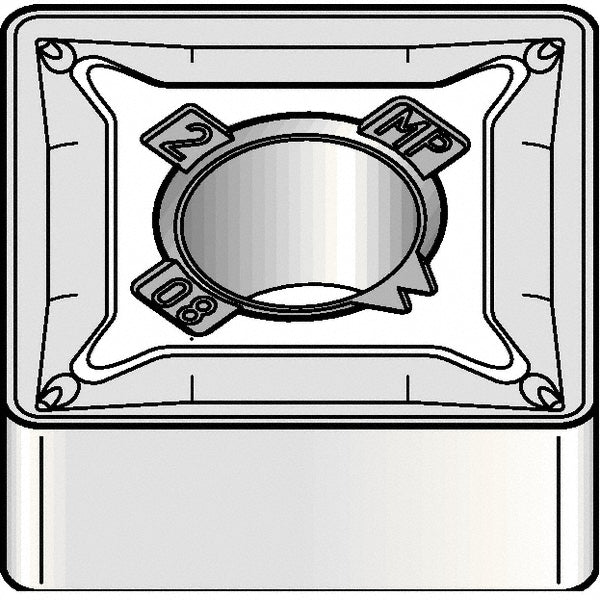

The Kennametal 5591954 is a SNMG150612MP carbide indexable insert, grade KCM25B, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeSNMG543
Ansi size code543
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2500
Included angle90
Industry standard numberSNMG543MP
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in5/8
Insert materialCarbide
Insert shapeS - Square
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG150612MP
Iso insert codeSNMG150612
Iso size code150612
Length range0.6000 - 0.6500
Manufacturers catalog number5591954
Manufacturer gradeKCM25B
Material gradeC1; C2
Maximum depth of cut0.2081
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle6
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
