Kennametal

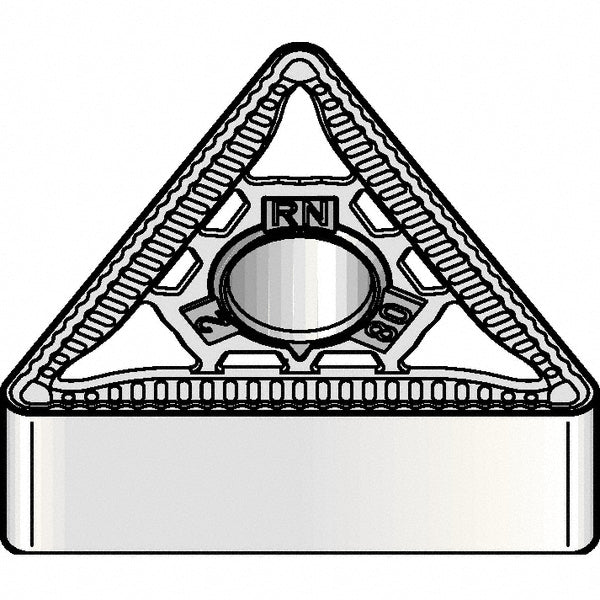

TNMG220412RN Carbide Insert, Grade KCP40B, TiN - Kennametal 5592010
MFR# 5592010ISO/ANSI# TNMG220412Series KENLOC
$27.43List $33.47
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKCP40B
MaterialCarbide
CoatingTiN
Description
The Kennametal 5592010 is a TNMG220412RN carbide indexable insert, grade KCP40B, TiN coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeTNMG433
Ansi size code433
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle60
Industry standard numberTNMG433RN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code433
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220412RN
Iso insert codeTNMG220412
Iso size code220412
Length range0.7000 - 10.0000
Manufacturers catalog number5592010
Manufacturer gradeKCP40B
Material gradeC5; C6
Maximum depth of cut0.2884
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
