Kennametal

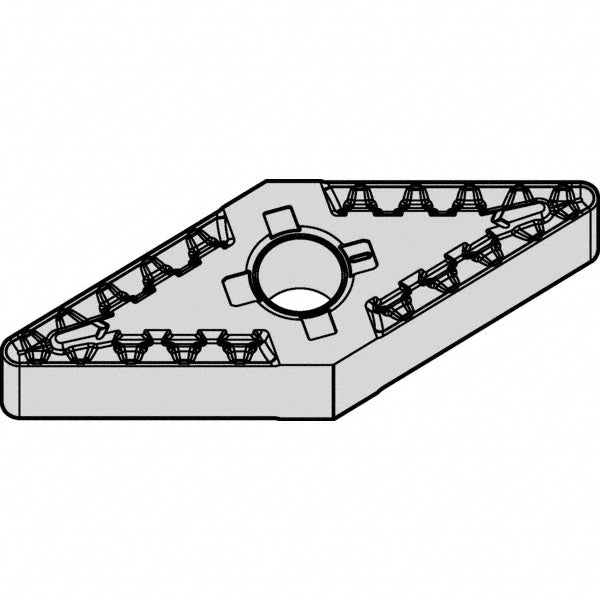

VNMG160412MR Carbide Insert, Grade KCM15, TiCN - Kennametal 5592160
MFR# 5592160ISO/ANSI# VNMG160412Series KENLOC
$31.29List $38.19
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCM15
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5592160 is a VNMG160412MR carbide indexable insert, grade KCM15, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVNMG333
Ansi size code333
Chip breakerMR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Industry standard numberVNMG333MR
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code333
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160412MR
Iso insert codeVNMG160412
Iso size code160412
Length range0.7000 - 10.0000
Manufacturers catalog number5592160
Manufacturer gradeKCM15
Material gradeC2; C3
Maximum depth of cut0.4356
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
