Kennametal

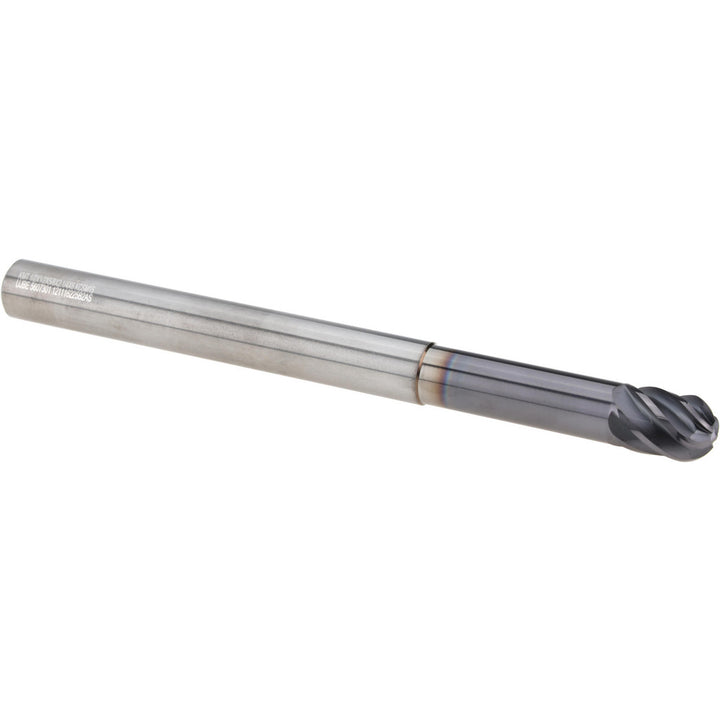

1/2" 6-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 5607301

MFR# 5607301Cat# UJBE0500J6ALSeries HARVI III UJBE

$340.66List $436.92 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 5607301 is a 1/2 6-flute Solid Carbide ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, high-temp alloy, hardened materials. 5/8 length of cut, 6 overall length. Series HARVI III UJBE.

Specifications

Additional informationVersatile Solid Carbide End Mill for Steels, Stainless Steel, & High-Temperature Alloys. Harvi III Solid Carbide End Mills Cover a Variety of Operations. Harvi III Solid Carbide End Mills Feature Unequal Flute Spacing for Chatter-Free Machining At Highe

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Helix styleMedium

Length of cut in5/8

Length typeExtended

Manufacturers catalog numberUJBE0500J6AL

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.0000/-0.0020 in

Neck diameter0.4700

Neck length in1-5/8

Nose radius0.2500

Number of flutes6

Overall length in6

Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy; Hardened Materials

Reach length in2-1/4

Shank diameter in1/2

Shank diameter tolerance+0.0000/-0.0043 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
