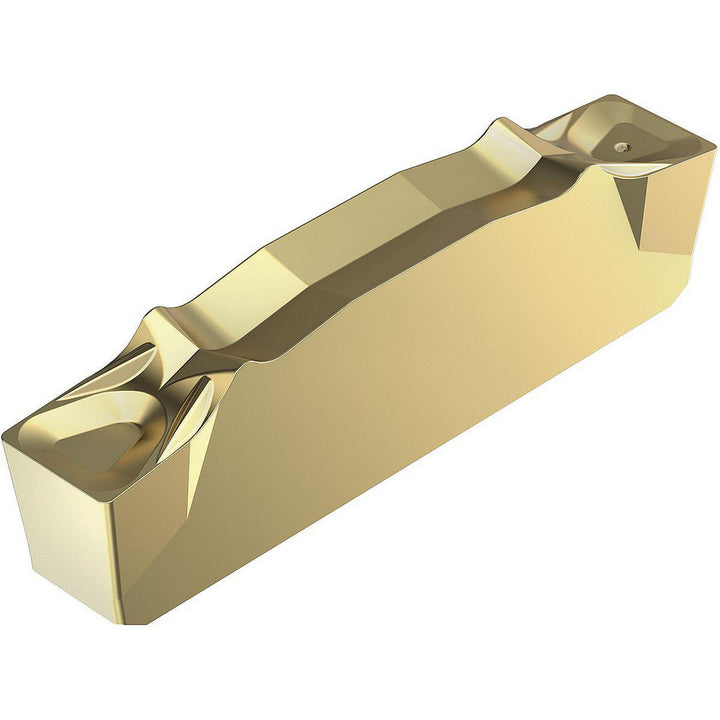

XCP34D400F020SGP Solid Carbide Insert, Grade KCU25, TiCN - Kennametal 5615017

Kennametal

XCP34D400F020SGP Solid Carbide Insert, Grade KCU25, TiCN - Kennametal 5615017

MFR# 5615017ISO/ANSI# XCP34D400F020SGPCat# XCP34D400F020SGPSeries XCP

$31.66List $38.65 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBone
GradeKCU25
MaterialSolid Carbide
CoatingTiCN

Description

The Kennametal 5615017 is a XCP34D400F020SGP solid carbide indexable insert, grade KCU25, TiCN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

Ansi codeXCP34D400F020SGP
Chip breakerGP
Coating finishTiCN
Coating processCVD
Corner radius (mm)0.20
Cutter series compatibilityKNS
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.1650
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeBone
Insert size34
Insert size code34
Insert styleXCP
Iso codeXCP34D400F020SGP
Length0.7090
Length range0.7000 to 0.9000
Manufacturers catalog numberXCP34D400F020SGP
Manufacturer gradeKCU25
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Maximum depth of cut0.5710
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle11
Relief angle2.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1650
Thickness range0.1500 to 0.1750
Width0.1580
