Kennametal

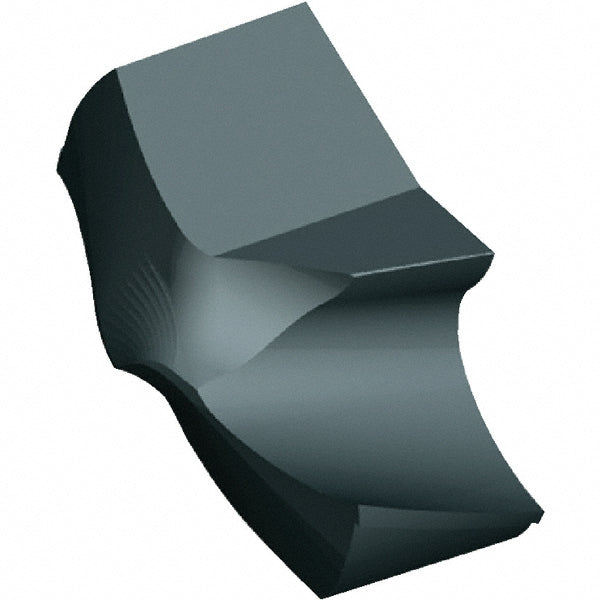

Carbide Insert, Grade KCPM45, TiAlN - Kennametal 5626730
MFR# 5626730Series KSEM
$228.03List $278.34
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCPM45
CoatingTiAlN
Description
The Kennametal 5626730 is a carbide indexable insert, grade KCPM45, TiAlN coated. Suited for steel, stainless steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter1.0039
DrillingStackedPlates
Drill point angle140
Flute length (mm)13.00
Flute typeHelical
Functional length0.5015
Height0.5906
Included angle degree140
Insert geometryHPG
Insert holding methodClamp
Insert seat size5
Iso numberKSEM2550HPGM
Manufacturer gradeKCPM45
Material gradeFine Grain
Number of flutes2
Overall length projection0.5015
Point typeStandard
Primary workpiece materialSteel; Stainless Steel
Spiral typeRegular Spiral
StyleKSEM
ThroughcoolantMQL(MinimumQuantityLubricant):Drilling; Drilling-ThroughCoolant
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
