Kennametal

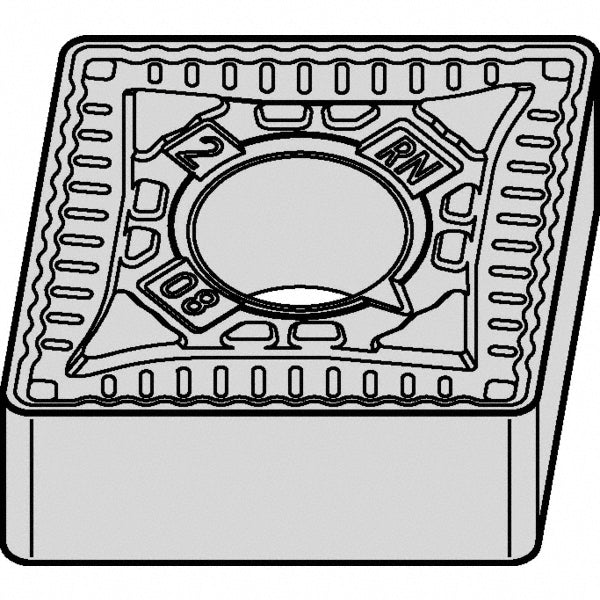

CNMG120412RN Carbide Insert, Grade KCPK05, TiCN - Kennametal 5629530
MFR# 5629530ISO/ANSI# CNMG120412Series KENLOC
$29.97List $35.94
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCPK05
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5629530 is a CNMG120412RN carbide indexable insert, grade KCPK05, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCNMG433
Ansi size code433
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle80
Industry standard numberCNMG433RN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412RN
Iso insert codeCNMG120412
Iso size code120412
Length range0.5000 - 0.6000
Manufacturers catalog number5629530
Manufacturer gradeKCPK05
Material gradeP05; P15; K25; K35
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
