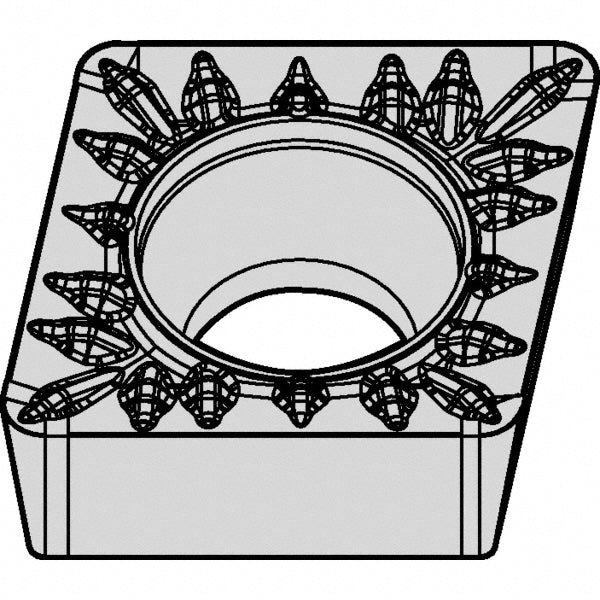

CCMT09T304MP Carbide Insert, Grade KCM15B, TiCN - Kennametal 5640960

Kennametal

CCMT09T304MP Carbide Insert, Grade KCM15B, TiCN - Kennametal 5640960

MFR# 5640960ISO/ANSI# CCMT09T304Series Screw-On

$29.73List $36.29 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCM15B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5640960 is a CCMT09T304MP carbide indexable insert, grade KCM15B, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCCMT3251
Ansi size code3251
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCCMT3251MP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3251
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304MP
Iso insert codeCCMT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog number5640960
Manufacturer gradeKCM15B
Material gradeC2; C3
Maximum depth of cut0.1249
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle12
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
