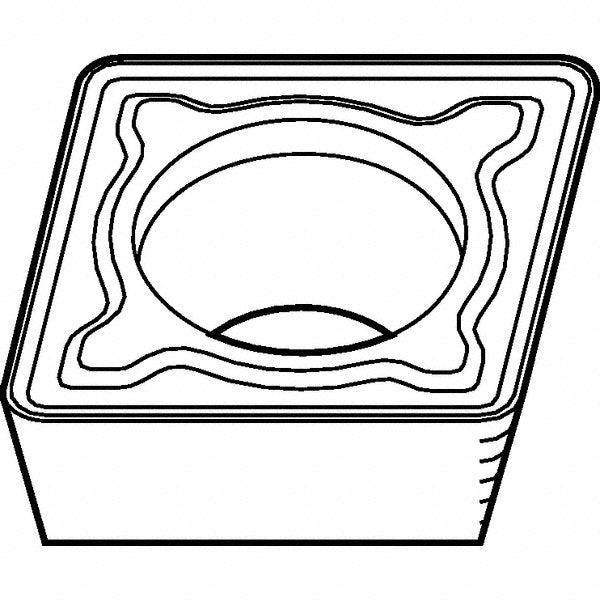

CPMT21.52 Carbide Insert, Grade KCM15B, TiCN - Kennametal 5641069

Kennametal

CPMT21.52 Carbide Insert, Grade KCM15B, TiCN - Kennametal 5641069

MFR# 5641069ISO/ANSI# CPMT060208Series Screw-On

$25.79List $31.47 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCM15B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5641069 is a CPMT21.52 carbide indexable insert, grade KCM15B, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCPMT2152
Ansi size code2152
Chip breakerMF
Chip breaker operationFinishing; Medium Machining
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle80
Industry standard numberCPMT2152MF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2152
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT21.52
Iso insert codeCPMT060208
Iso size code060208
Length range0.0000 - 0.3000
Manufacturers catalog number5641069
Manufacturer gradeKCM15B
Material gradeC2; C3
Maximum depth of cut0.0845
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
