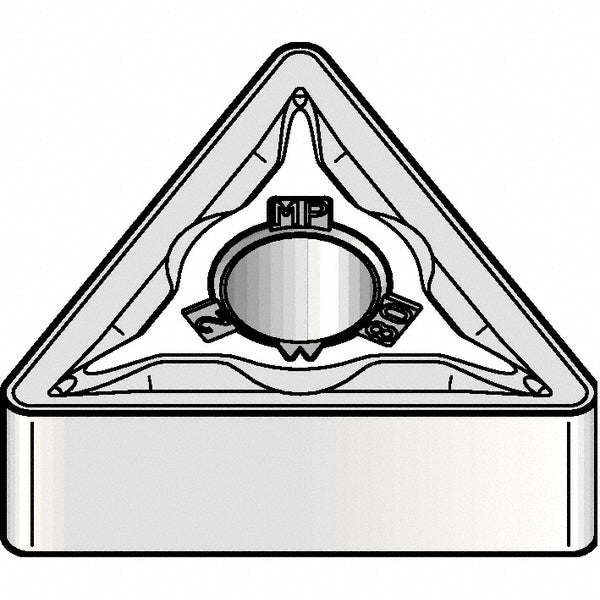

T - Triangle 1/2" IC Carbide Insert, Grade KCM15B, TiCN - Kennametal 5641113

Kennametal

T - Triangle 1/2" IC Carbide Insert, Grade KCM15B, TiCN - Kennametal 5641113

MFR# 5641113ISO/ANSI# TNMG220408Series KENLOC

$27.43List $33.47 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKCM15B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5641113 is a carbide indexable insert, grade KCM15B, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTNMG432
Ansi size code432
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle60
Industry standard numberTNMG432MP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso insert codeTNMG220408
Iso size code220408
Lead angle60
Length range0.7000 - 10.0000
Manufacturers catalog number5641113
Manufacturer gradeKCM15B
Material gradeC2; C3
Maximum depth of cut0.2884
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle6
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
