Kennametal

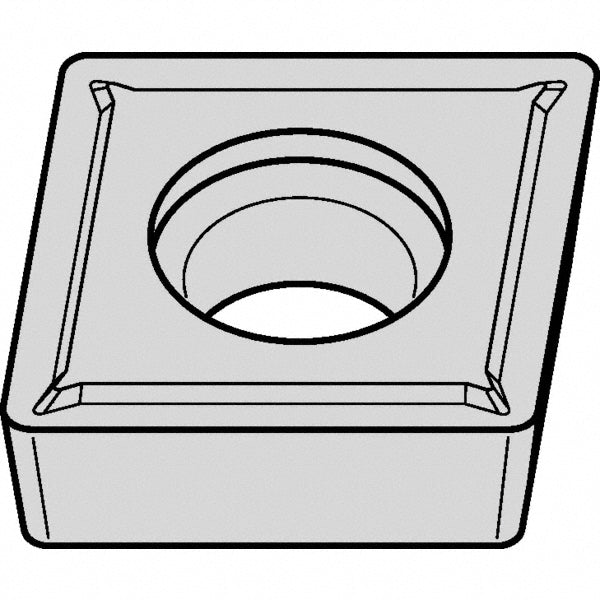

CCMT09T308LF Carbide Insert, Grade KCK20B, TiCN - Kennametal 5641237
MFR# 5641237ISO/ANSI# CCMT09T308Series Screw-On
$29.73List $36.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCK20B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5641237 is a CCMT09T308LF carbide indexable insert, grade KCK20B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCCMT3252
Ansi size code3252
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCCMT3252LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3252
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308LF
Iso insert codeCCMT09T308
Iso size code09T308
Length range0.3000 - 0.4000
Manufacturers catalog number5641237
Manufacturer gradeKCK20B
Material gradeC2; C3
Maximum depth of cut0.1268
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
