Kennametal

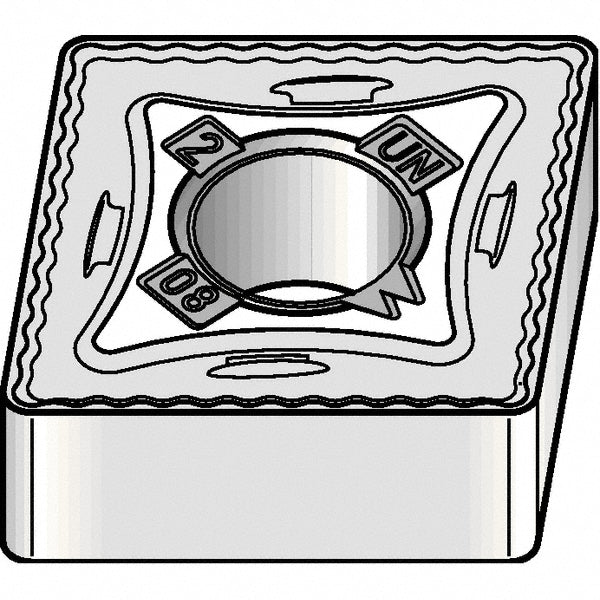

CNMG160608UN Carbide Insert, Grade KCK20B, TiCN - Kennametal 5642148
MFR# 5642148ISO/ANSI# CNMG160608Series KENLOC
$41.01List $50.05
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCK20B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5642148 is a CNMG160608UN carbide indexable insert, grade KCK20B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCNMG542
Ansi size code542
Chip breakerUN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2500
Included angle80
Industry standard numberCNMG542UN
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160608UN
Iso insert codeCNMG160608
Iso size code160608
Length range0.6000 - 0.6500
Manufacturers catalog number5642148
Manufacturer gradeKCK20B
Material gradeC2; C3
Maximum depth of cut0.2113
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
