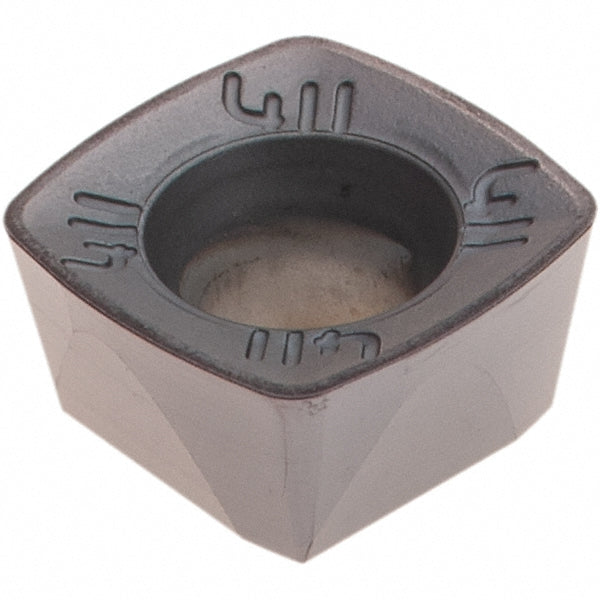

XDLT090412ERD411 Solid Carbide Insert, Grade SP6519, TiAlN - Kennametal 5652249
MFR# 5652249ISO/ANSI# XDLT090412ERD411Cat# XDLT090412ERD411Series XDLT
$35.79List $42.92
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeSP6519
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5652249 is a XDLT090412ERD411 solid carbide indexable insert, grade SP6519, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXDLT090412ERD411
Chip breakerD411
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibility7792VXD09
Cutting edge styleHoned
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090412
Insert styleXDLT
Iso codeXDLT090412ERD411
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberXDLT090412ERD411
Manufacturer gradeSP6519
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width in3/8
