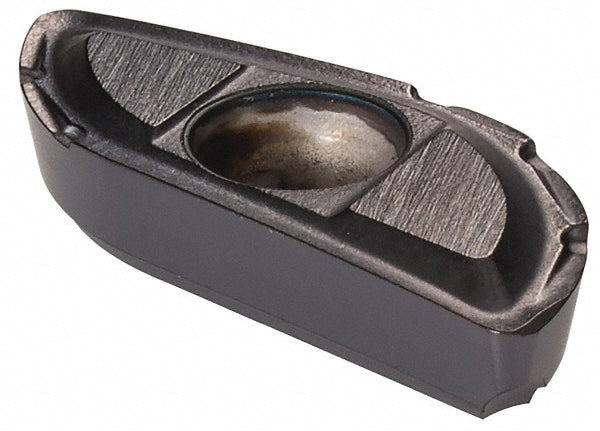

XPNT16160308RF Solid Carbide Insert, Grade SP6519, TiAlN - Kennametal 5653062
MFR# 5653062ISO/ANSI# XPNT16160308RFCat# XPNT16160308RFSeries XPNT
$52.22List $63.74
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose
GradeSP6519
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5653062 is a XPNT16160308RF solid carbide indexable insert, grade SP6519, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXPNT050522RF
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Cutter series compatibility5505VX
Cutting edge styleHoned
Included angle degree360
Inscribed circle0.2910
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size05
Insert size code050522
Insert styleXPNT
Iso codeXPNT16160308RF
Length0.6850
Length range0.6500 to 0.7000
Manufacturers catalog numberXPNT16160308RF
Manufacturer gradeSP6519
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.2910
