Kennametal

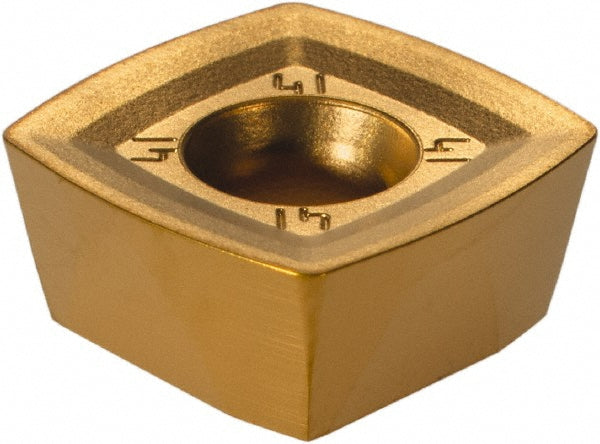

XDLT120508ERD41 Solid Carbide Insert, Grade X500, TiN - Kennametal 5653930
MFR# 5653930ISO/ANSI# XDLT120508ERD41Cat# XDLT120508ERD41Series XDLT
$45.08List $55.02
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeX500
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 5653930 is a XDLT120508ERD41 solid carbide indexable insert, grade X500, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXDLT120508ERD41
Chip breakerD41
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibility7792VXD12
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120508
Insert styleXDLT
Iso codeXDLT120508ERD41
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberXDLT120508ERD41
Manufacturer gradeX500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C3; C6; C7
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in1/2
