Kennametal

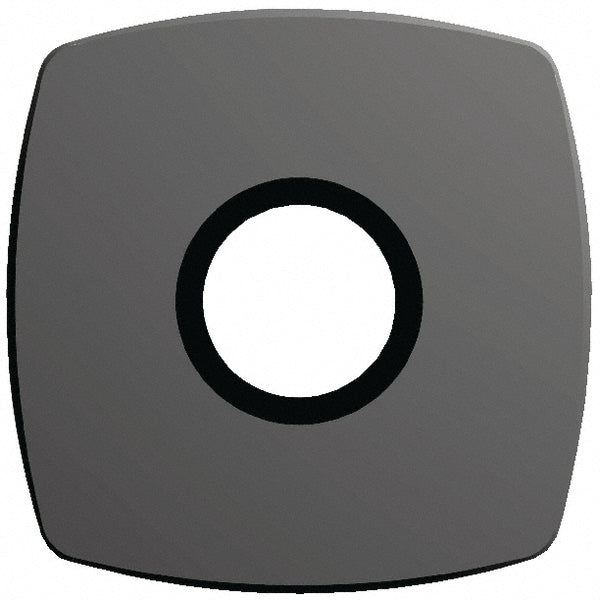

XELW160512SRD Solid Carbide Insert, Grade X400, TiAlN - Kennametal 5653967
MFR# 5653967ISO/ANSI# XELW160512SRDCat# XELW160512SRDSeries XELW
$47.43List $57.89
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeX400
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5653967 is a XELW160512SRD solid carbide indexable insert, grade X400, TiAlN coated. Suited for steel, hard material.
Specifications
Ansi codeXELW160512SRD
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibility7792VXE16
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.6610
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size16
Insert size code160512
Insert styleXELW
Iso codeXELW160512SRD
Length0.6614
Length range0.6500 to 0.7000
Manufacturers catalog numberXELW160512SRD
Manufacturer gradeX400
Material applicationSteel; Hard Material
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.6610
