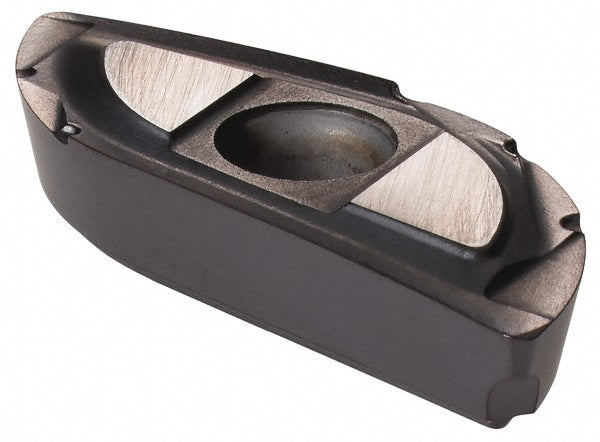

XPNT25250408RF Solid Carbide Insert, Grade SP6519, TiAlN - Kennametal 5654214

Kennametal

XPNT25250408RF Solid Carbide Insert, Grade SP6519, TiAlN - Kennametal 5654214

MFR# 5654214ISO/ANSI# XPNT25250408RFCat# XPNT25250408RFSeries XPNT

$69.95List $83.90 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
GradeSP6519
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 5654214 is a XPNT25250408RF solid carbide indexable insert, grade SP6519, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeXPNT080832RF
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Cutter series compatibility5505VX
Cutting edge styleHoned
Included angle degree360
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size08
Insert size code080832
Insert styleXPNT
Iso codeXPNT25250408RF
Length1.0260
Length range1.0000+
Manufacturers catalog numberXPNT25250408RF
Manufacturer gradeSP6519
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.4331
