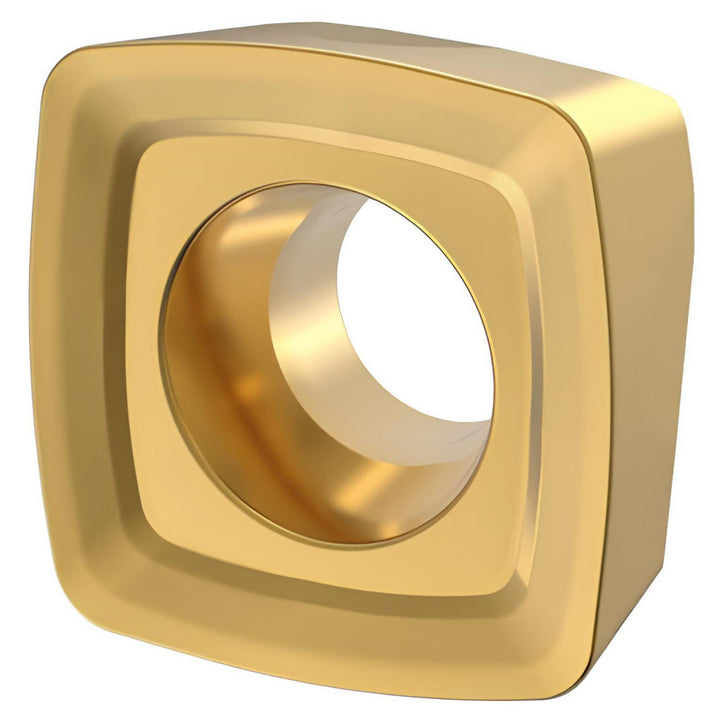

XPLT060308ERD41 Solid Carbide Insert, Grade X500, TiN - Kennametal 5654397

Kennametal

XPLT060308ERD41 Solid Carbide Insert, Grade X500, TiN - Kennametal 5654397

MFR# 5654397ISO/ANSI# XPLT060308ERD41Cat# XPLT060308ERD41Series XPLT

$34.62List $41.52 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeX500
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 5654397 is a XPLT060308ERD41 solid carbide indexable insert, grade X500, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeXPLT060308ERD41
Chip breakerD41
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibility7792VXP06
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2760
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size06
Insert size code060308
Insert styleXPLT
Iso codeXPLT060308ERD41
Length0.2760
Length range0.0000 to 0.3200
Manufacturers catalog numberXPLT060308ERD41
Manufacturer gradeX500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.2760
