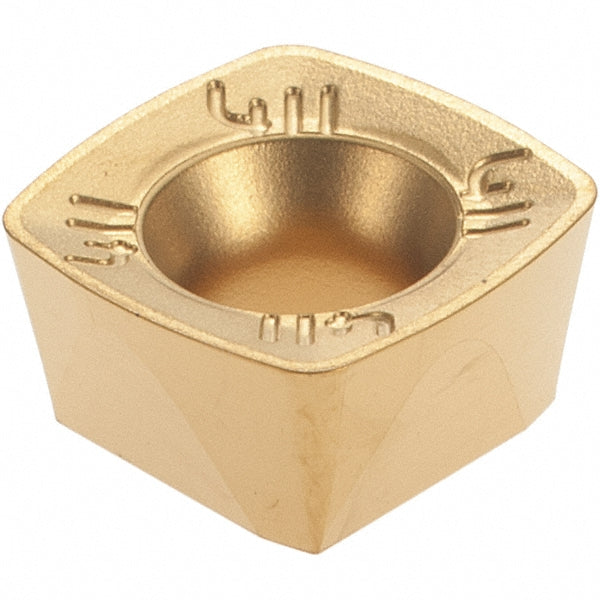

XDLT090412ERD411 Solid Carbide Insert, Grade X500, TiN - Kennametal 5655172

Kennametal

XDLT090412ERD411 Solid Carbide Insert, Grade X500, TiN - Kennametal 5655172

MFR# 5655172ISO/ANSI# XDLT090412ERD411Cat# XDLT090412ERD411Series XDLT

$47.07List $56.45 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeX500
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 5655172 is a XDLT090412ERD411 solid carbide indexable insert, grade X500, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeXDLT090412ERD411
Chip breakerD411
Coating finishTiN
Coating processCVD
Corner radius in3/64
Cutter series compatibility7792VXD09
Cutting edge styleHoned
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090412
Insert styleXDLT
Iso codeXDLT090412ERD411
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberXDLT090412ERD411
Manufacturer gradeX500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width in3/8
