Kennametal

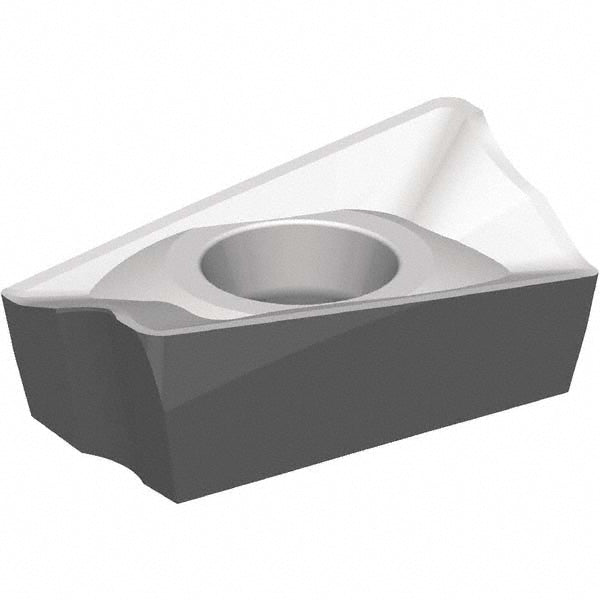

Parallelogram 0.3090" IC Solid Carbide Insert, Grade SP6519, TiAlN - Kennametal 5660556
MFR# 5660556Series APET
$38.73List $46.46
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeSP6519
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5660556 is a solid carbide indexable insert, grade SP6519, TiAlN coated.
Specifications
Chip breaker48
Coating finishTiAlN
Coating processPVD
Inscribed circle0.3090
Inscribed circle range0.3500 to 0.4000
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPET
Manufacturer gradeSP6519
Relief angle11.00
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/8
