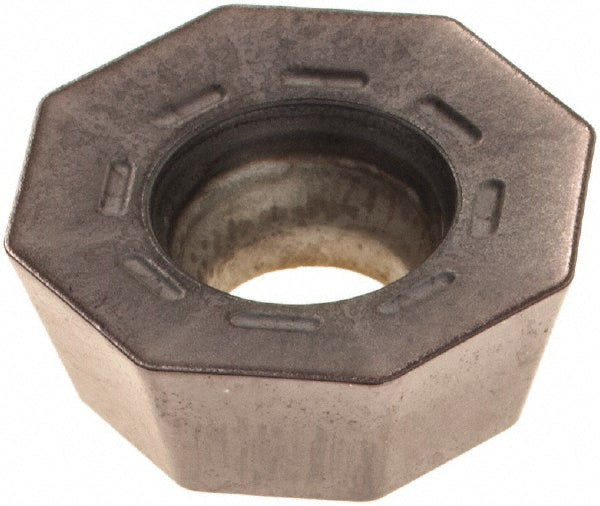

ODMT040408EN412 Solid Carbide Insert, Grade SP6519, TiAlN - Kennametal 5665818
MFR# 5665818ISO/ANSI# ODMT040408EN412Cat# ODMT040408EN412Series ODMT
$25.22List $30.78
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeSP6519
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5665818 is a ODMT040408EN412 solid carbide indexable insert, grade SP6519, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeODMT040408EN412
Chip breaker412
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility7745VOD04
Cutting edge styleHoned
Included angle degree135
Inscribed circle0.5039
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size04
Insert size code040408
Insert styleODMT
Iso codeODMT040408EN412
Length0.5039
Length range0.5000 to 0.6000
Manufacturers catalog numberODMT040408EN412
Manufacturer gradeSP6519
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.5039
