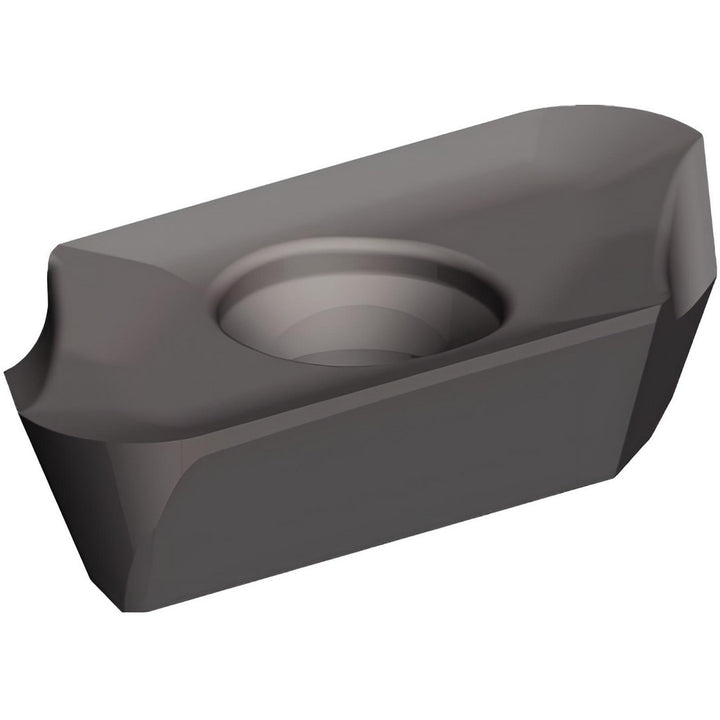

ZDET16M525FR721 Solid Carbide Insert, Grade GH1 - Kennametal 5667922

Kennametal

ZDET16M525FR721 Solid Carbide Insert, Grade GH1 - Kennametal 5667922

MFR# 5667922ISO/ANSI# ZDET16M525FR721Cat# ZDET16M525FR721Series ZDET

$47.81List $58.36 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeGH1
MaterialSolid Carbide

Description

The Kennametal 5667922 is a ZDET16M525FR721 solid carbide indexable insert, grade GH1. Suited for cast iron, non-ferrous metal.

Specifications

Ansi codeZDET16M525FR721
Chip breaker721
Coating processUncoated
Corner radius in7/64
Cutter series compatibility5720VZD16
Cutting edge styleSharp
Included angle degree90
Inscribed circle0.4430
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code16M525
Insert styleZDET
Iso codeZDET16M525FR721
Length in29/32
Length range0.9000 to 1.0000
Manufacturers catalog numberZDET16M525FR721
Manufacturer gradeGH1
Material applicationCast Iron; Non-Ferrous Metal
Material gradeMicrograin
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Non-Ferrous Metal
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1970
Thickness range0.1850 to 0.2000
Width0.4430
