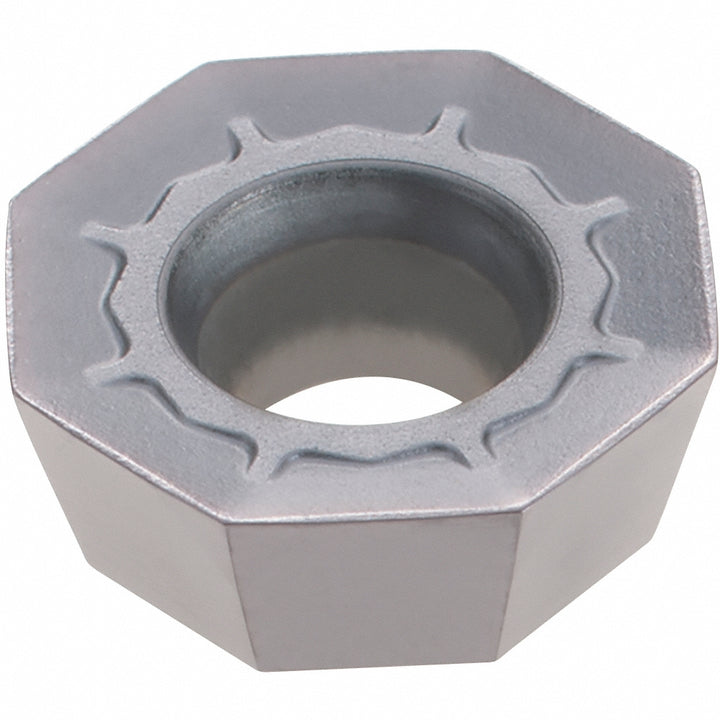

ODET0404APEN44 Solid Carbide Insert, Grade SP6519, TiAlN - Kennametal 5667950

Kennametal

ODET0404APEN44 Solid Carbide Insert, Grade SP6519, TiAlN - Kennametal 5667950

MFR# 5667950ISO/ANSI# ODET0404APEN44Cat# ODET0404APEN44Series ODET

$33.56List $40.25 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeSP6519
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 5667950 is a ODET0404APEN44 solid carbide indexable insert, grade SP6519, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeODET0404APEN44
Chip breaker44
Coating finishTiAlN
Coating processPVD
Cutter series compatibility7745VOD04
Cutting edge styleHoned
Included angle degree135
Inscribed circle0.5040
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size04
Insert size code0404
Insert styleODET
Iso codeODET0404APEN44
Length0.5040
Length range0.5000 to 0.6000
Manufacturers catalog numberODET0404APEN44
Manufacturer gradeSP6519
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.5040
