Kennametal

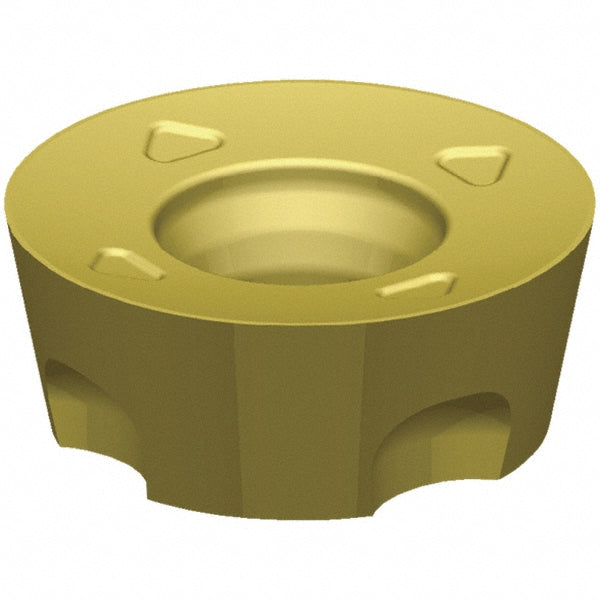

RPHT1204M0E442X4 Solid Carbide Insert, Grade X700, TiAlN - Kennametal 5668072
MFR# 5668072ISO/ANSI# RPHT1204M0E442X4Cat# RPHT1204M0E442X4Series RPHT
$30.31List $36.35
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeX700
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5668072 is a RPHT1204M0E442X4 solid carbide indexable insert, grade X700, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeRPHT1204M0E442X4
Chip breaker442X4
Coating finishTiAlN
Coating processPVD
Cutter series compatibility7713VR12
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRPHT
Iso codeRPHT1204M0E442X4
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberRPHT1204M0E442X4
Manufacturer gradeX700
Material applicationStainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4724
