Kennametal

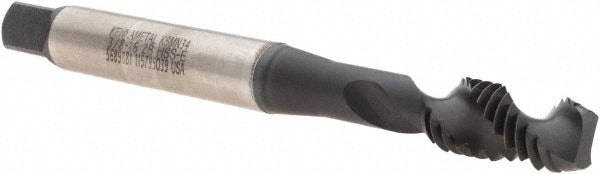

3/8-16 UNC Cobalt Tap, Multi-layer - Kennametal 5689881
MFR# 5689881Series T682
$63.57List $80.12
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size3/8-16
CoatingMulti-layer
Description
The Kennametal 5689881 is a 3/8-16 UNC Cobalt tap with a Multi-layer finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishMulti-layer
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum Wrought Alloy
Neck length0.7900
Number of flutes2
Overall length3.9400
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter0.3810
Tapping depth1.5400
Thread directionRight Hand
Thread length (mm)19.00
Thread limitH5
Thread size in3/8-16
Thread standardUNC
