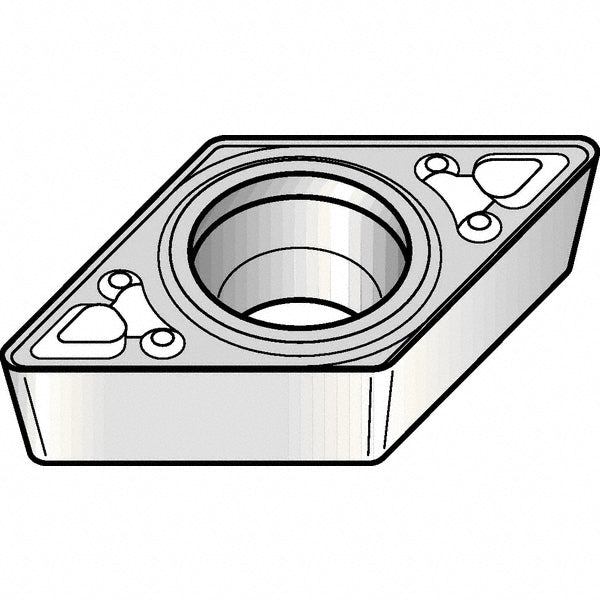

DCMT11T304MF Carbide Insert, Grade KCP25B, TiCN - Kennametal 5694103

Kennametal

DCMT11T304MF Carbide Insert, Grade KCP25B, TiCN - Kennametal 5694103

MFR# 5694103ISO/ANSI# DCMT11T304Series Screw-On

$19.23List $23.48 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCP25B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5694103 is a DCMT11T304MF carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi insert codeDCMT3251
Ansi size code3251
Chip breakerMF
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle55
Industry standard numberDCMT3251MF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code3251
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304MF
Iso insert codeDCMT11T304
Iso size code11T304
Length range0.7000 - 10.0000
Manufacturers catalog number5694103
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
