Kennametal

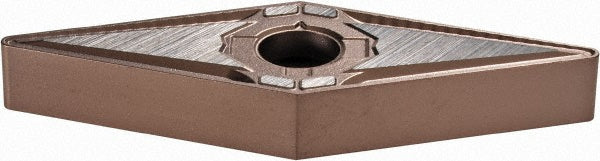

VNMG220408LF Carbide Insert, Grade KCP25B, TiCN - Kennametal 5696941
MFR# 5696941ISO/ANSI# VNMG220408Series KENLOC
$41.37List $50.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5696941 is a VNMG220408LF carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeVNMG432
Ansi size code432
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle35
Industry standard numberVNMG432LF
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.7434
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code432
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG220408LF
Iso insert codeVNMG220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog number5696941
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.5806
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
