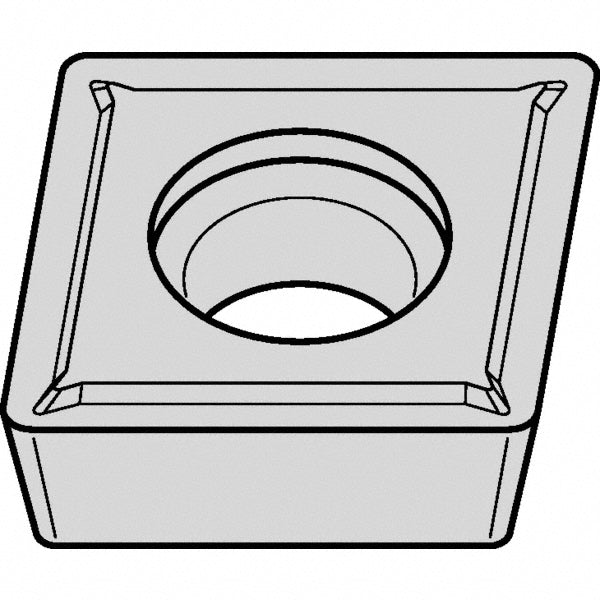

CPMT21.51 Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697018

Kennametal

CPMT21.51 Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697018

MFR# 5697018ISO/ANSI# CPMT2151LFSeries Screw-On

$25.79List $31.47 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeKCP10B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5697018 is a CPMT21.51 carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.

Specifications

Chip breakerLF
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCPMT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond 80
Insert size code2151
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT21.51
Length range0.0000 - 0.3000
Manufacturers catalog number5697018
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.0845
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
