Kennametal

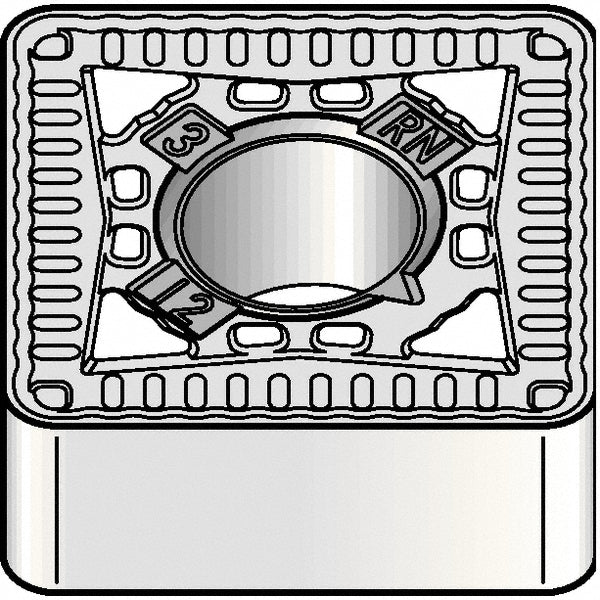

SNMG190612RN Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697164
MFR# 5697164ISO/ANSI# SNMG190612Series KENLOC
$48.08List $58.69
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeS - Square
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5697164 is a SNMG190612RN carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeSNMG643
Ansi size code643
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.3125
Included angle90
Industry standard numberSNMG643RN
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeS - Square
Insert size code643
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG190612RN
Iso insert codeSNMG190612
Iso size code190612
Length range0.7000 - 10.0000
Manufacturers catalog number5697164
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.2498
Maximum depth of cut frac in1/4
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
