Kennametal

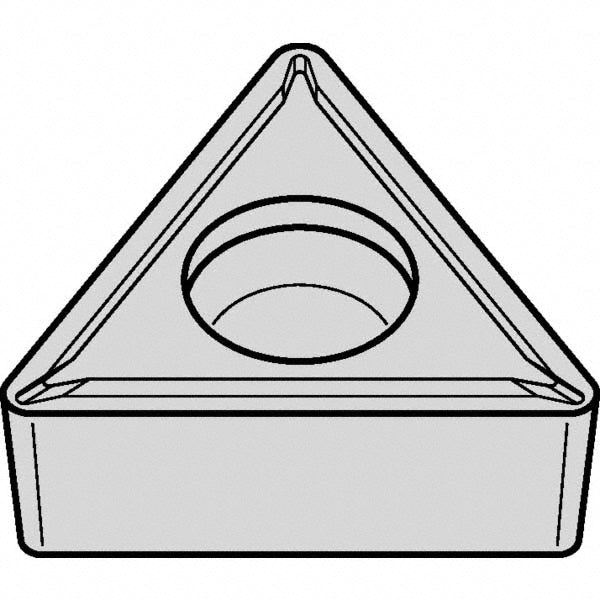

TCMT110204LF Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697166
MFR# 5697166ISO/ANSI# TCMT110204Series Screw-On
$28.89List $35.27
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5697166 is a TCMT110204LF carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeTCMT2151
Ansi size code2151
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1102
Included angle60
Industry standard numberTCMT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code2151
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT110204LF
Iso insert codeTCMT110204
Iso size code110204
Length range0.4000 - 0.5000
Manufacturers catalog number5697166
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.1442
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.4331
Wiper edgeNo
