Kennametal

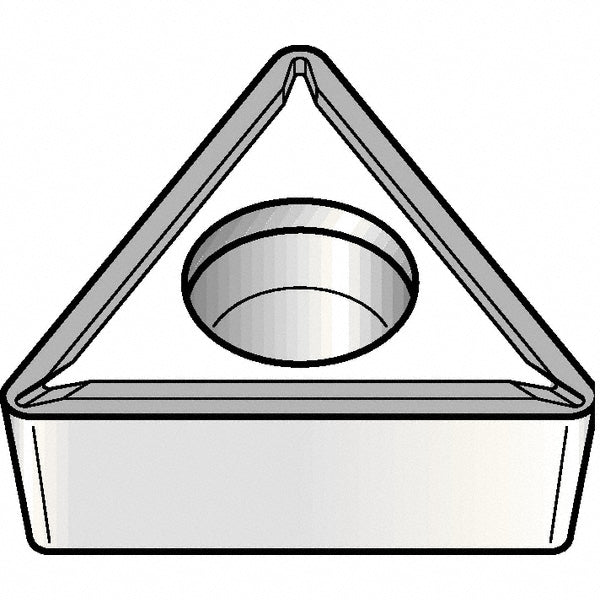

TPMT16T304LF Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697184
MFR# 5697184ISO/ANSI# TPMT16T304Series Screw-On
$33.02List $40.30
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5697184 is a TPMT16T304LF carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeTPMT3251
Ansi size code3251
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle60
Industry standard numberTPMT3251LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6495
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3251
Insert styleTPMT
Insert thickness in5/32
Iso codeTPMT16T304LF
Iso insert codeTPMT16T304
Iso size code16T304
Length range0.6000 - 0.6500
Manufacturers catalog number5697184
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6495
Wiper edgeNo
