Kennametal

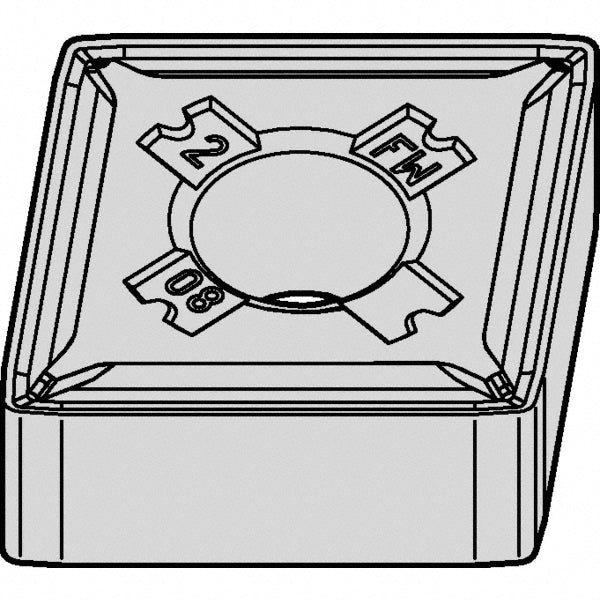

CNMG120412FW Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697925
MFR# 5697925ISO/ANSI# CNMG120412Series KENLOC
$30.20List $36.22
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5697925 is a CNMG120412FW carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCNMG433
Ansi size code433
Chip breakerFW
Chip breaker operationWiper - Finishing
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle80
Industry standard numberCNMG433FW
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412FW
Iso insert codeCNMG120412
Iso size code120412
Length range0.5000 - 0.6000
Manufacturers catalog number5697925
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeYes
