Kennametal

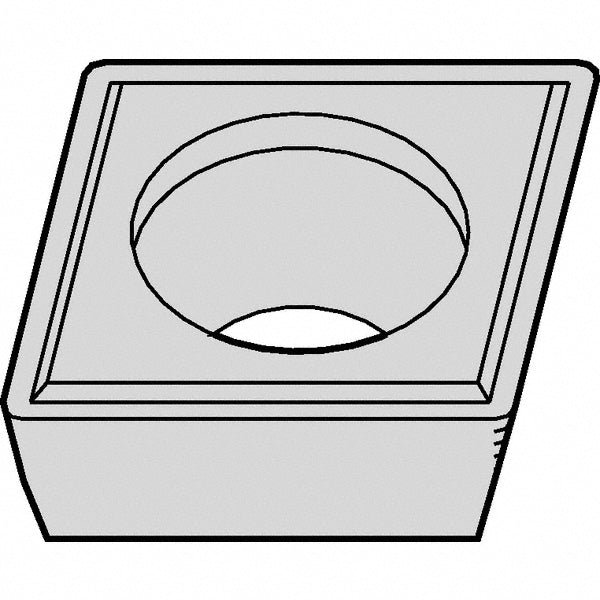

CPGM32.51 Carbide Insert, Grade KCP10B, TiCN - Kennametal 5697945
MFR# 5697945ISO/ANSI# CPGM09T304Series Screw-On
$30.82List $37.61
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5697945 is a CPGM32.51 carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCPGM3251
Ansi size code3251
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCPGM3251
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3251
Insert styleCPGM
Insert thickness in5/32
Iso codeCPGM32.51
Iso insert codeCPGM09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog number5697945
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.1268
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
