Kennametal

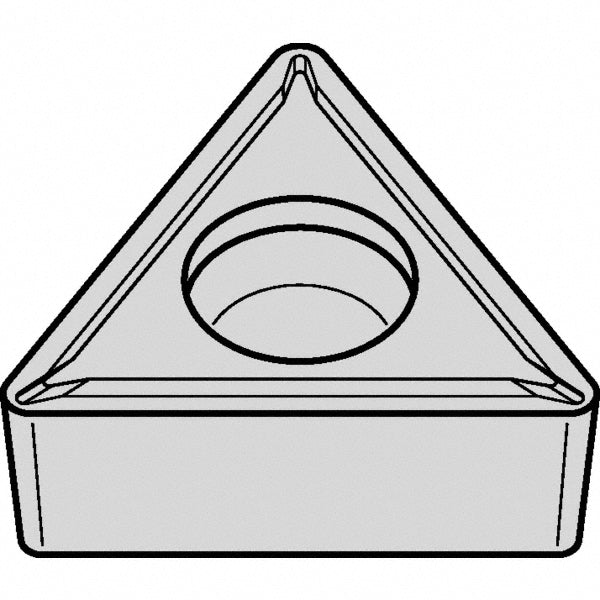

TCMT16T304LF Carbide Insert, Grade KCP25B, TiCN - Kennametal 5698120
MFR# 5698120ISO/ANSI# TCMT16T304Series Screw-On
$40.24List $48.26
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5698120 is a TCMT16T304LF carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeTCMT3251
Ansi size code3251
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle60
Industry standard numberTCMT3251LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6495
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3251
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T304LF
Iso insert codeTCMT16T304
Iso size code16T304
Length range0.6000 - 0.6500
Manufacturers catalog number5698120
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6495
Wiper edgeNo
