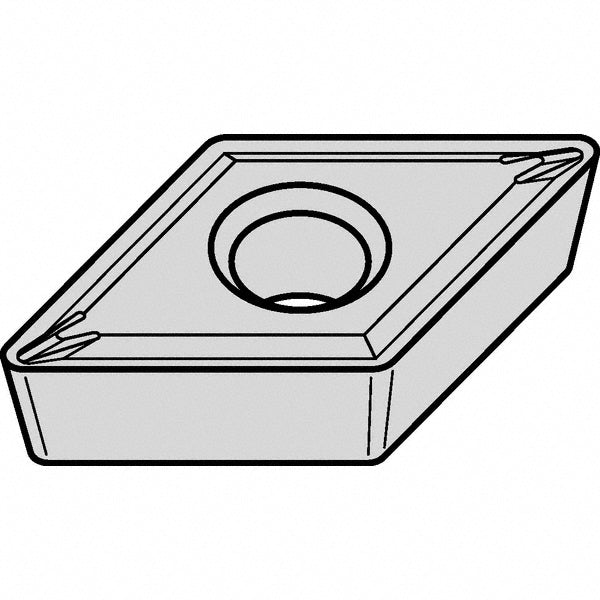

DCMT11T304LF Carbide Insert, Grade KCP25B, TiCN - Kennametal 5698170

Kennametal

DCMT11T304LF Carbide Insert, Grade KCP25B, TiCN - Kennametal 5698170

MFR# 5698170ISO/ANSI# DCMT3251LFSeries Screw-On

$19.23List $23.48 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeKCP25B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5698170 is a DCMT11T304LF carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.

Specifications

Chip breakerLF
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCMT3251LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeDiamond 55
Insert size code3251
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304LF
Length range0.7000 - 10.0000
Manufacturers catalog number5698170
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
