Kennametal

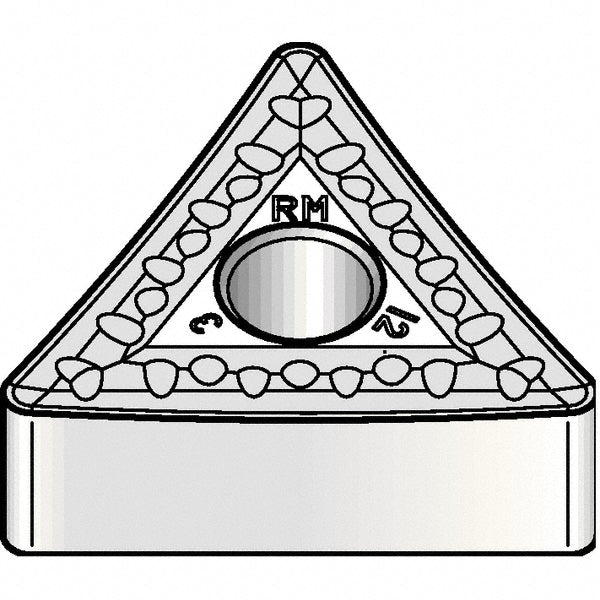

TNMM220408RM Carbide Insert, Grade KCP25B, TiCN - Kennametal 5698210
MFR# 5698210ISO/ANSI# TNMM432RMSeries KENLOC
$32.21List $38.64
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5698210 is a TNMM220408RM carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerRM
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle60degree
Industry standard numberTNMM432RM
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMM
Insert thickness in3/16
Iso codeTNMM220408RM
Length range0.7000 - 10.0000
Manufacturers catalog number5698210
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.2884
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.8661in
Wiper edgeNo
