Kennametal

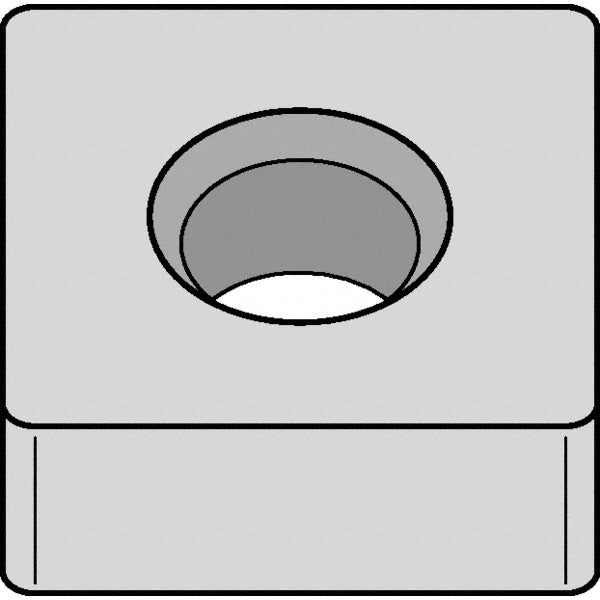

SNMA432 Carbide Insert, Grade KCK15B, TiCN - Kennametal 5698279
MFR# Kennametal-5698279ISO/ANSI# SNMA432Cat# 5698279Series KENLOC
$19.49List $23.79
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCK15B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5698279 is a SNMA432 carbide indexable insert, grade KCK15B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle90degree
Industry standard numberSNMA432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMA
Insert thickness in3/16
Iso codeSNMA432
Length range0.5000 - 0.6000
Manufacturers catalog number5698279
Manufacturer gradeKCK15B
Material gradeC3; C4
Maximum depth of cut0.1665
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
