Kennametal

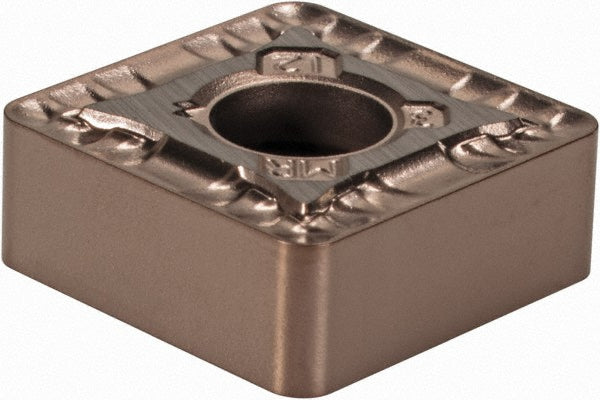

SNMG120412MR Carbide Insert, Grade KCM25B, TiCN - Kennametal 5699583
MFR# 5699583ISO/ANSI# SNMG120412Series KENLOC
$23.52List $28.71
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKCM25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5699583 is a SNMG120412MR carbide indexable insert, grade KCM25B, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeSNMG433
Ansi size code433
Chip breakerMR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle90
Industry standard numberSNMG433MR
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code433
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120412MR
Iso insert codeSNMG120412
Iso size code120412
Length range0.5000 - 0.6000
Manufacturers catalog number5699583
Manufacturer gradeKCM25B
Material gradeC1; C2
Maximum depth of cut0.1665
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
