Kennametal

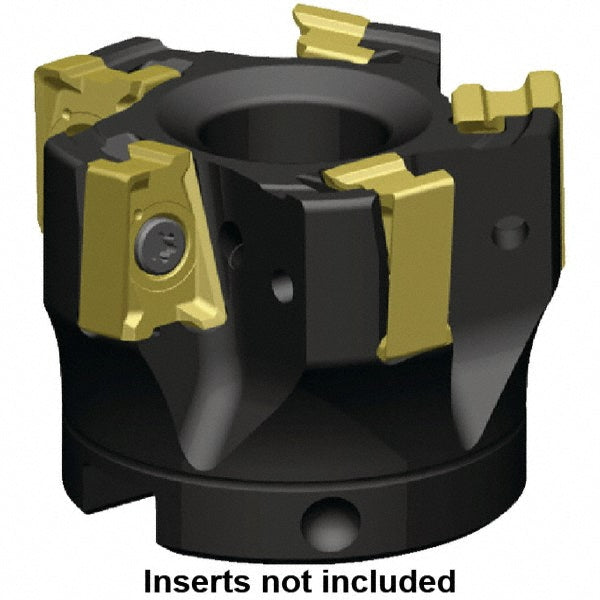

Indexable Milling Cutters - Kennametal 5702496
MFR# 5702496Series MILL 4-15
$999.33List $1,219.80
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Kennametal 5702496 indexable milling cutters. Series MILL 4-15.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size codeLNGU15T608SRGE
Coolant hole diameter0.1180
Coolant throughYes
Cutter styleM4
Cutting directionRight Hand
Hub diameter3.3800
Insert holding methodClamp; Screw
Lead angle0
Maximum body diameter3.8820
Maximum cutting diameter in4
Maximum depth of cut (mm)15.50
Number of cutter inserts6
Number of flutes6
Overall height in2
Toolholder materialSteel
