Kennametal

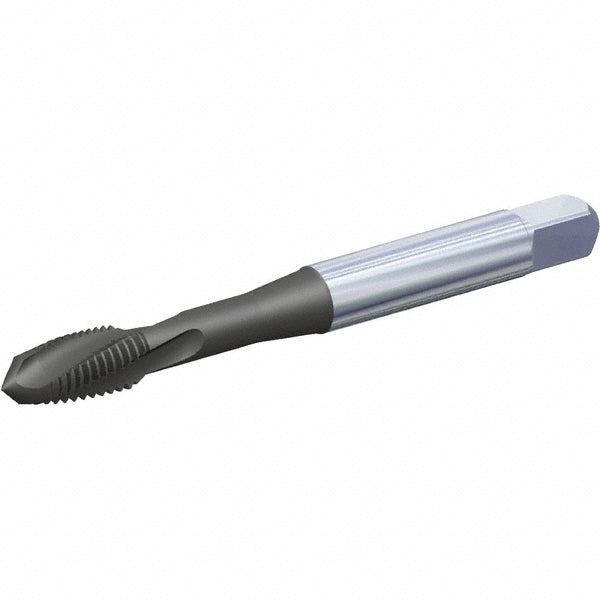

1/4-20 UNC Powdered Metal Tap, AlCrTiN - Kennametal 5705415
MFR# 5705415Series T690
$45.00List $57.62
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingAlCrTiN
Description
The Kennametal 5705415 is a 1/4-20 UNC Powdered Metal tap with a AlCrTiN finish. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishAlCrTiN
Coolant throughNo
Flute directionLeft Hand
Flute styleSlow
Helix angle10
MaterialPowdered Metal
Material applicationNickel Alloy
Neck length0.5800
Number of flutes3
Overall length in2-1/2
Primary workpiece materialHigh-Temp Alloy
Shank diameter0.2550
Tapping depth1.0200
Thread directionRight Hand
Thread length0.4400
Thread limitH3
Thread size in1/4-20
Thread standardUNC
