Kennametal

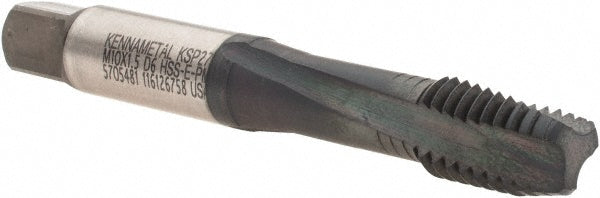

M10x1.5 Metric Coarse Powdered Metal Tap, AlCrTiN - Kennametal 5705481
MFR# 5705481Series T692
$85.41List $109.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingAlCrTiN
Description
The Kennametal 5705481 is a Metric Coarse Powdered Metal tap with a AlCrTiN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishAlCrTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle10
MaterialPowdered Metal
Material applicationNickel Alloy
Neck length0.7300
Number of flutes3
Overall length in2-15/16
Primary workpiece materialHigh-Temp Alloy
Shank diameter0.3810
Tapping depth1.2600
Thread directionRight Hand
Thread length0.5300
Thread limitD6
Thread size (mm)M10x1.5
Thread standardMetric Coarse
