Kennametal

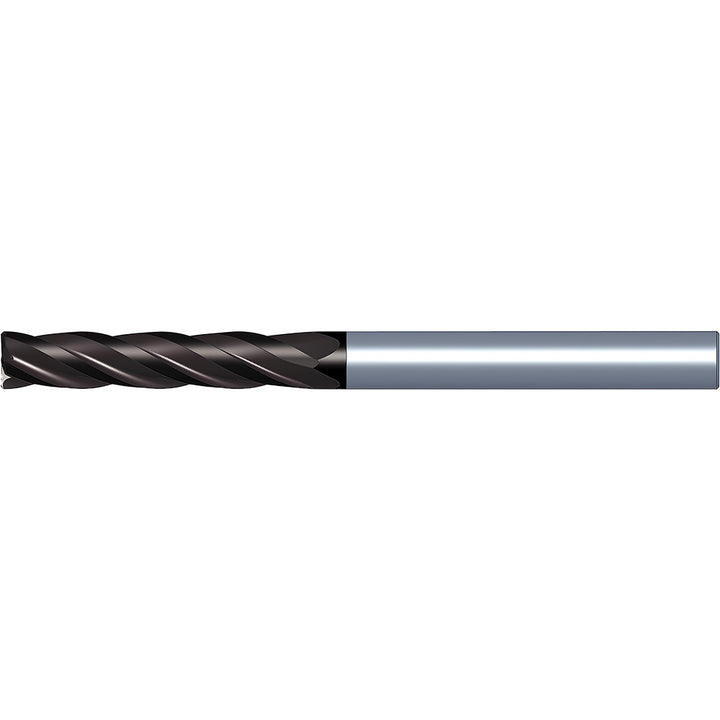

5/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiN - Kennametal 5824404

MFR# 5824404Cat# 4CH0625IR125ASeries 4CH

$239.99List $307.80 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialSolid Carbide

CoatingTiN

Description

The Kennametal 5824404 is a 5/8 4-flute Solid Carbide (KC633M) corner radius & corner chamfer end mill with a TiN; TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal. 1-1/4 length of cut, 3-1/2 overall length. Series 4CH.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0200

Chamfer width0.0200

ChipbreakerNo

Coating finishTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Helix styleMedium

Length of cut in1-1/4

Length typeRegular

Manufacturers catalog number4CH0625IR125A

Material gradeKC633M

Material removal typeRoughing & Finishing

Mill diameter in5/8

Mill diameter tolerance-0.032 to -0.059 mm

Number of flutes4

Overall length in3-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal

Reach length in1-1/4

Shank diameter in5/8

Shank diameter tolerance+0.000 to -0.011 mm

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
