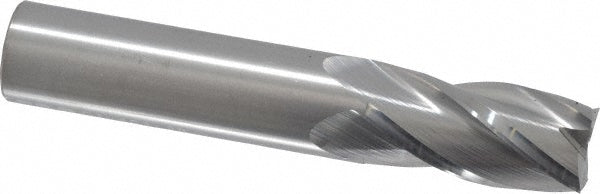

5/8" 4-Flute Solid Carbide Square End Mill - RobbJack C1-401-20

RobbJack

5/8" 4-Flute Solid Carbide Square End Mill - RobbJack C1-401-20

MFR# C1-401-20Series C1-401

$269.54List $287.94 Save 6%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide

Description

The RobbJack C1-401-20 is a 5/8 4-flute Solid Carbide (C2) square end mill. 1-1/4 length of cut, 3-1/2 overall length. Series C1-401.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/4
Length typeRegular
Material gradeC2
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.003 in
Number of flutes4
Overall length in3-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in5/8
Shank diameter tolerance-0.0001/-0.0002 in
Variable helixNo
Variable indexNo
